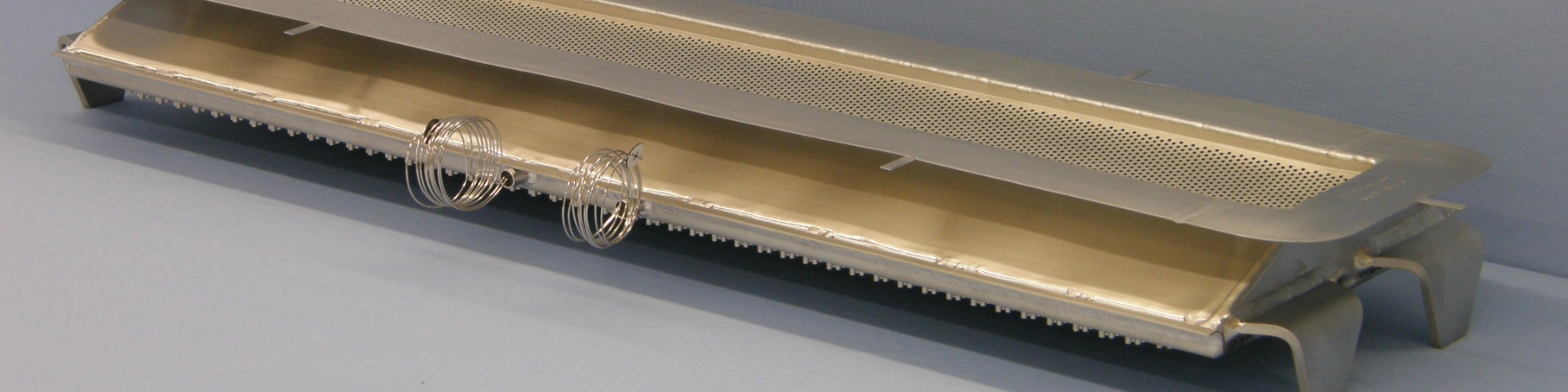

Glass Fibers
In the production of glass fibers, unhindered fiber drawing subsequent to the melting process is of great significance. The continuous flow of the melt should ensure that fibers do not tear off and that the diameter of the fine fibers remains constant. Heraeus will help you to achieve this goal and to optimize your products. Profit from our many years experience.
Your Benefits in Summary
- An experienced partner in the field of manufacturing glass fiber bushings
- Short delivery times as we offer the necessary complete package of logistics and expertise
- High quality bushings by means of state of the art production technologies and the most modern materials
- High strength and minimum sagging as prerequisite for a long service life
- Optimized design as a prerequisite for the manufacture of uniform fibers
Get Advice on Your Specific Requirements
Find the right material for your product in our material database.
Contact us to discuss further steps to find the optimal solution for your process.
Our core competencies and material portfolio at a glance
Fields of Application of Glass Fibers
Glass fiber bushings are used for a multitude of glass fibers of C and E glasses and for the production of basalt fibers, i.e., for more than 90% of all fibers produced worldwide.
- Continuous fibers
for woven and non-woven textiles - Short fibers
for thermal insulation materials in houses, sound and fire protection of tanks, containers and turbines, reinforcement fibers in circuit boards, strengthening of plastics and plasterboards, concrete reinforcement
Portfolio

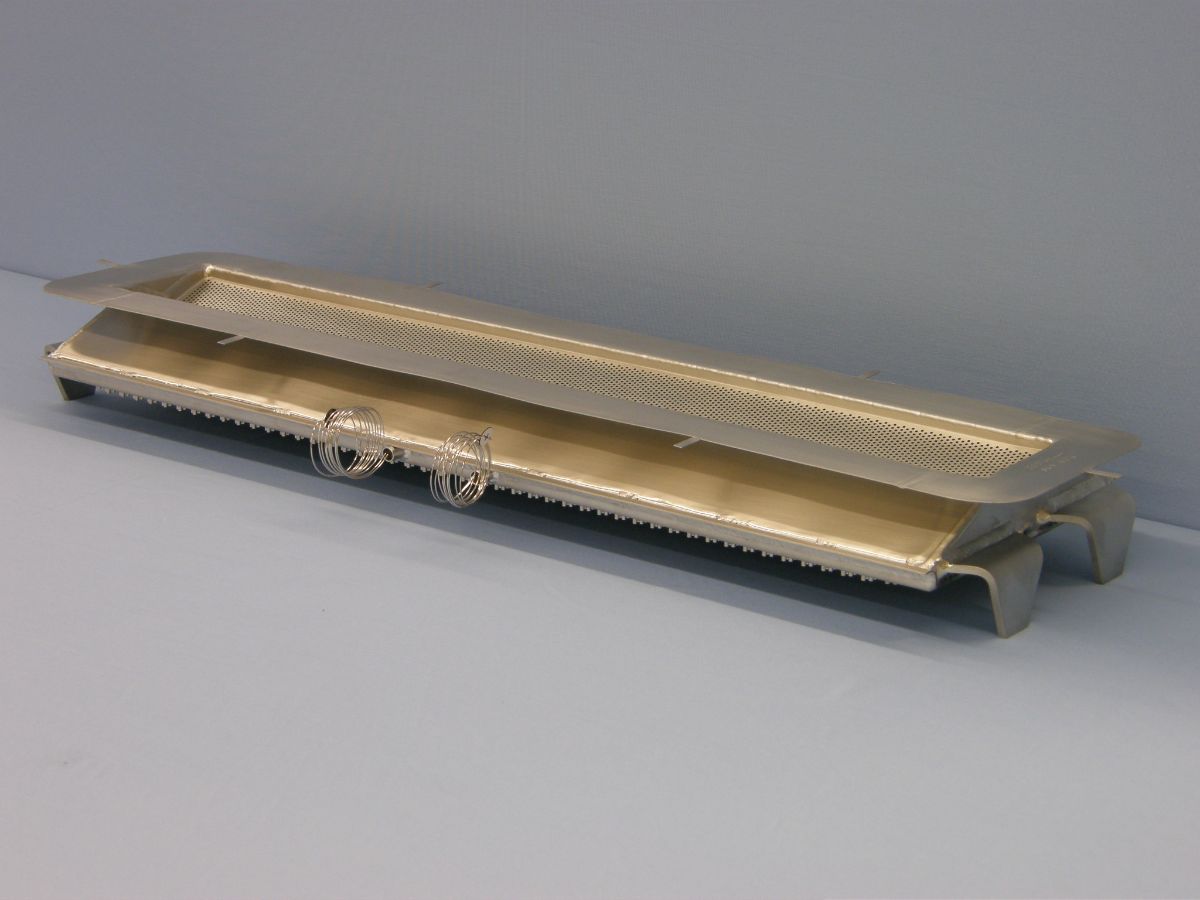

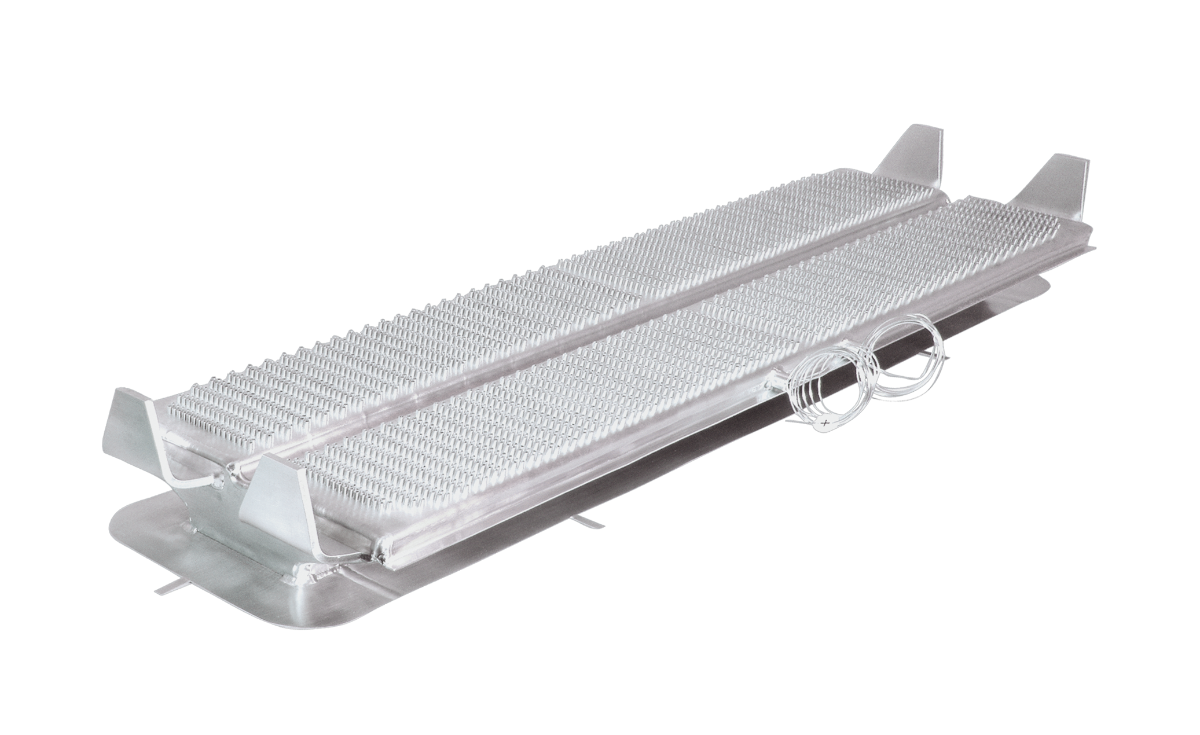

Glass fiber bushings
- with TIG-welded tips
- with laser-welded tips
Basalt fiber bushings
Bushings for extreme thermal and corrosive conditions, such as those encountered for example in processing molten basalt, S-glass and mineral glasses.
Individual design for the perfect process
The first glass fibers were manufactured in Hamburg by W. von Paczinsky in 1908 using a bushing. Industrial production started in the USA in 1930 and in Germany in 1939, initially using 51-, 102- and 204-tip bushings. Heraeus has been producing glass fiber bushings since 1970. The designs have been continually optimized and, by reducing the spacing, the number of tips has been increased to 4000 and more. To meet customer requirements, bushings can be made both for the two-step process, in which glass pellets are melted on a perforated sheet and subsequently drawn to fibers, and for the single-step process, in which pre-melted glass is fed into the bushing. We would be pleased to assist you in continually optimizing your system.
The Right Material
A special Challenge for each Type of Glass
Welded tip plates have the advantage that the tip geometry can be designed at will (e.g., variable distribution of the diameter and stepped internal diameter) and the materials for the tips and the remaining bushing do not have to be identical. In this way, load bearing parts of the bushing can be made from materials with maximum strength and service life. The particle strengthened DPH materials are available for this purpose. We would be pleased to advise you in selecting the right materials for your application.
- Pt-10%Rh and Pt-20%Rh: if a conventional alloy is required.
- Pt-10%Rh DPH: for high strength, dimensionally stable tip plates.
- Pt-10%Rh DPH-A: for high strength dimensionally stable tip plates with reduced precious metal inventory.
Looking for the right material? Our Material Database may help.
